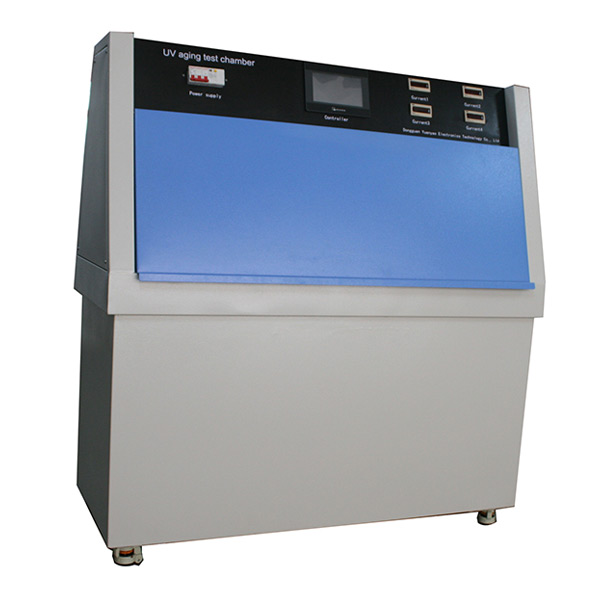

UV Aging Test Chamber
下載
資料 點擊
觀看
發(fā)送詢問
資料 點擊
觀看
UV aging test chamber is suitable for accelerated weathering test of paint, ink, chemical, rubber, paint, adhesive, etc. It can simulate environmental conditions such as ultraviolet, rain, high temperature, high humidity, condensation and darkness in natural climate. By recreating these conditions, they are combined into one cycle, and it is automatically executed to complete multiple cycles.
| Model | YUV-080 | |
|---|---|---|
| Test area size W*H*D (cm) | 40*50*40 | |
| Exterior chamber size W*H*D (cm) | Depends on the chamber design | |
| Performance | Temp.range | RT+10℃~70℃ |
| Humi.range | 75%RH~95%RH | |
| Rain time | (1~9999mins, adjustable) | |
| Rain period | (1~240mins, interval adjustable | |
| Light model | UV-A(295~360nm), UV-B(280~315nm) optional | |
| UVA/UVB light power | 40W(lifetime 1800h) | |
| Irradiance | 1.0W/m2 adjustable | |
| Standard specimen size | 75*150mm or 75*300mm | |
| Control accuracy | ±0.1℃, ±1%RH | |
| System | Temp.controller | Imported LED digital display PID+ SSR microcomputer integrator |
| Sensor | Perkin resistance PT100Ω/MV | |
| Time controller | Imported programmable time controller | |
| Heating system | Nichrome heater | |
| Condensation humidification system | Stainless steel humidifier | |
| Blackboard temp | Metal blackboard thermometer | |
| Water supply system | Auto water filling system | |
| Circulating system | Quiet motor, multi-vane centrifugal fan | |
| Material | Exterior chamber material | Stainless steel |
| Inner chamber material | SUS#304 stainless steel | |
| Sample holder material | SUS#304 stainless steel | |
| Standard configuration | Standard sample holder 24pcs, light tubes 8pcs (UVA/UVB) | |
| Safety protection | Leakage, short circuit, over temp., water shortage, over current protection | |
| Power supply | AC 1ψ220V 60/50Hz | |
| Operation condition | 5℃~+30℃≤85%R.H | |
| Customization service | Non-standard or special requirements are all welcome | |
