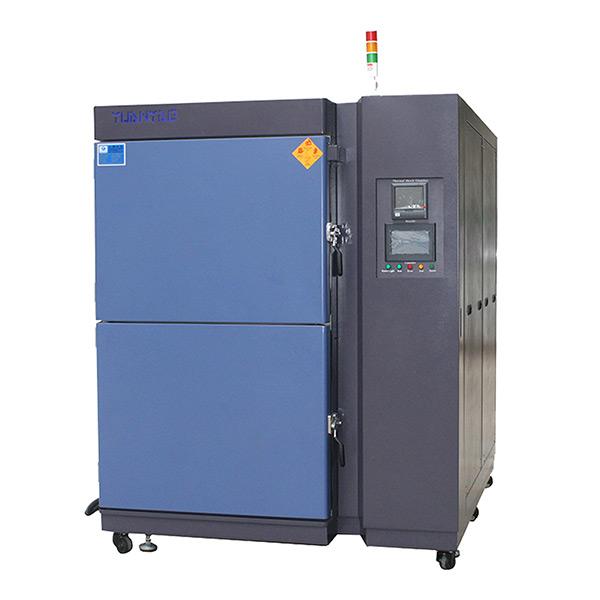

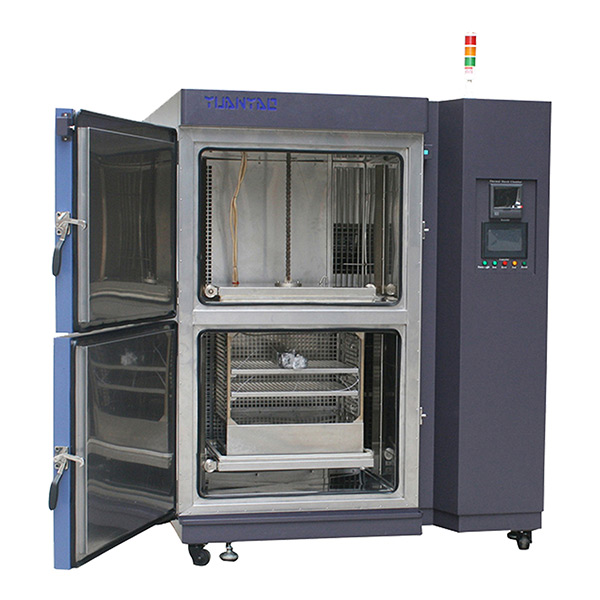

2 Zones Thermal Shock Chamber
下載
資料 點擊
觀看
發(fā)送詢問
資料 點擊
觀看
Widely used in the industries of metals, plastics, rubber, electronics, auto parts and other materials. It is used to test the ability of endurance of material structures or composite materials in a continuous conditions of extremely high temperature and extremely low temperature. The quality of the product can be confirmed by detecting chemical changes or physical damage caused by thermal expansion and contraction of the sample.
| Model | YTST-050 | YTST-080 | YTST-108 | YTST-216 | YTST-252 |
|---|---|---|---|---|---|
| Test zone size W×H×D(cm) | 36×35×40 | 50×40×40 | 60×40×45 | 60×60×60 | 60×70×60 |
| Exterior chamber size W×H×D (cm) | 128x182x205 | 142x192x205 | 152x192x210 | 215x213x205 | 215x223x205 |
| Hot zone temp. range | +60℃ ～ +200℃ | ||||
| Cold zone temp. range | -10℃～-40℃，-10℃～-60℃，-10℃～-70℃ | ||||
| Test zone temp. range | -40℃～+150℃，-55℃～+150℃，-60℃～+150℃ | ||||
| Temp. fluctuation | ±2℃ | ||||
| Temp. recovery time | <5min | ||||
| Specimen transfer time | within 15 seconds | ||||
| Heating&cooling time ℃/min | Average 3 ℃/min for heating, 1℃/min for cooling ( empty) | ||||
| Exterior material | Cold rolled plate + Powder coating | ||||
| Internal tank | Stainless steel plant #304 | ||||
| Insulation | PU+Fiberglass wool | ||||
| Heating system | Stainelss steel high temp. heater | ||||
| Cooling system | Compressor + Finned evaporator + Air(Water) cooled condenser | ||||
| Controller | Touch LCD ++ SSR + PID | ||||
| Accessories |
Vacuum glass observation window Power test hole (50mm) Control status indicator Interior light Load shelf (2 freely adjustable) |
||||
| Protection |
Overheat protection circuit breaker Compressor overload protection Control system overload protection Overload indicator Phase sequence protection High voltage and low voltage protection Over temperature protection Fan overcurrent protection |
||||
| Power supply | AC 3Ψ380V 60/50Hz | ||||
| Customization | Special requirements, custom service | ||||
