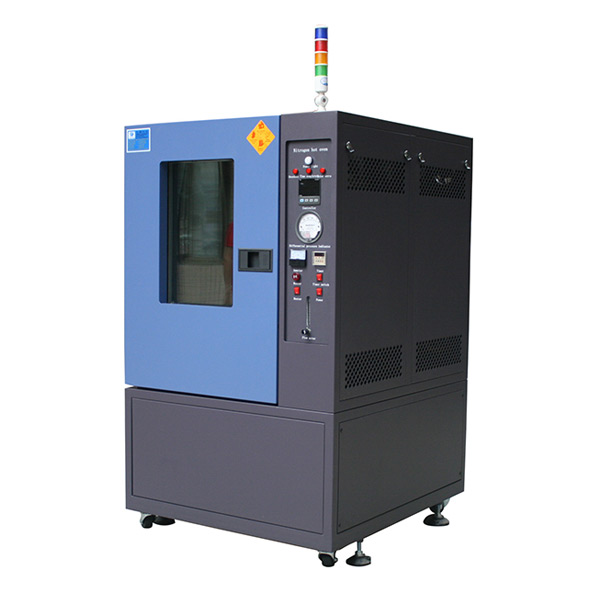

Nitrogen Drying Oven
下載
資料 點擊
觀看
發(fā)送詢問
資料 點擊
觀看
Nitrogen oven is widely used in chemical laboratory, electric laboratory, electronic communication, plastic, cable, electroplating, hardware, electricity, plastic products, molding, shoe material, spraying, printing, medical, aerospace and universities and other industries.
| Model | YNO-072 | YNO-270 | YNO-480 | YNO-600 | YNO-720 | YNO-1000 |
|---|---|---|---|---|---|---|
| Inner chamber size W×H×D(cm) | 40×45×40 | 60×90×50 | 80×100×50 | 100×100×60 | 100×120×60 | 100×100×100 |
| External chamber size W×H×D(cm) | 72×116×56 | 93×163×67 | 110×172×77 | 130×172×77 | 116×170×116 | 116×150×166 |
| Temperture. range | Room Temperture+25℃~200℃(300℃) | |||||
| Temperture.fluctuation | ±0.3℃ | |||||
| Temperture.uniformity | ±1%℃ | |||||
| Temperture.Resolution | 0.1℃ | |||||
| Oxygen concentration | 0-2000PPM | |||||
| Heating up time | 30min | |||||
| External chamber material | Cold rolled sheet+power coating | |||||
| Internal chamber material | SUS＃201 Stainless steel plate(Adopt SUS＃304 stainless steel when temperature>200℃) | |||||
| Insulation | Fiberglass wool | |||||
| Wind Circulation system | Centrifugal fan air circulation system | |||||
| Heating system | SUS＃Stainless steel high-speed heater | |||||
| Controlling system | Button type digital display controller | |||||
| Nitrogen system | Flow meter + Pressure meter (oxygen analyser is optional) | |||||
| Other components | Control status indicator light, shelf(2pcs, height adjustable) | |||||
| Safe device | Phase sequence protection,over temperature protection,overload protection | |||||
| Power supply | AC 3ψ 380V 60/50Hz | |||||
| Customization service | No-standard or special requirements are all welcome | |||||
